DIMENSIONS
1890L x 750W x 1075H
WHEELBASE
1350 mm
DRY WEIGHT
124 kg

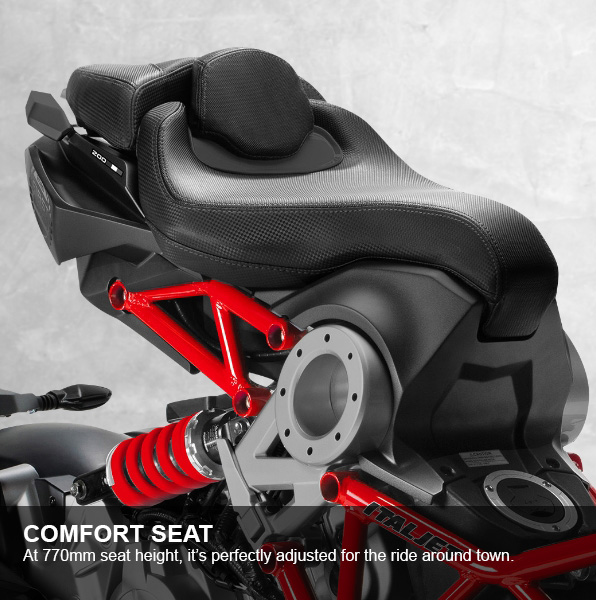

SEAT HEIGHT
770 mm
FUEL TANK
9L

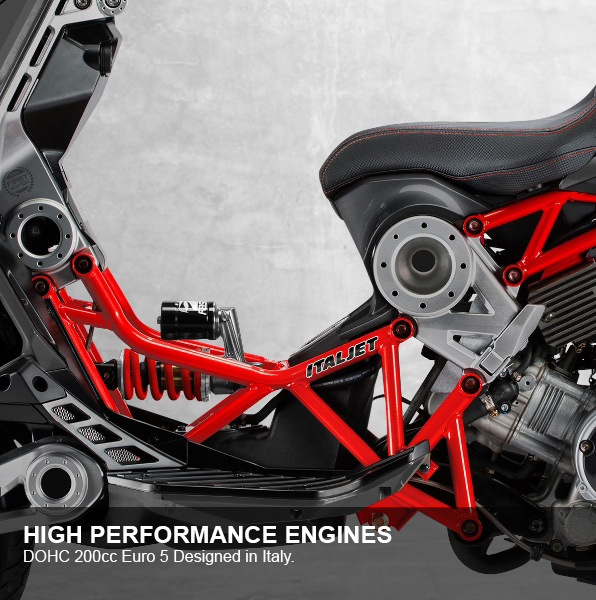

- TYPE: Single Cylinder, 4 strokes, 4 valves, liquid cooled – Double overhead camshaft DOHC
- BORE & STROKE: 63 x 58 (mm)
- DISPLACEMENT: 200cc
- MAX POWER: 17.5 hp (12.9kW) @8000RPM
- TORQUE: 15.5 N.m @7750 RPM
- INJECTION: Electronic MAGNETI MARELLI
- STARTING: Electric
- CLUTCH: Centrifuge dry clutch
- TRANSMISSION: C.V.T. trapezoidal belt – gears
- COOLING SYSTEM: Liquid Cooling

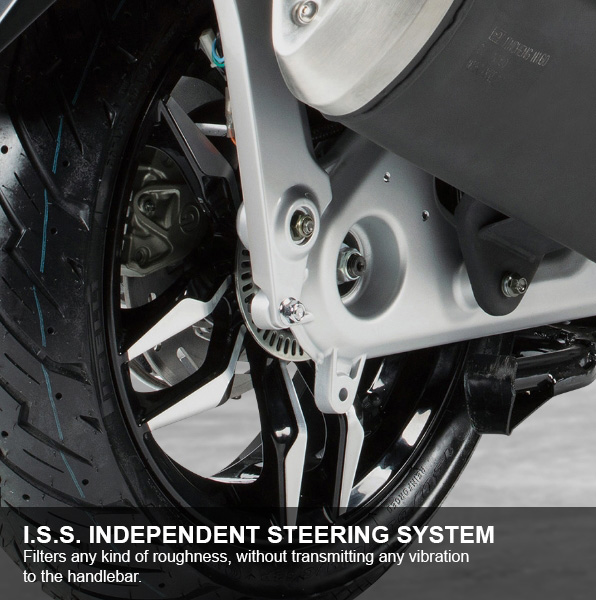

- FRONT SUSPENSION: I.S.S. single-arm and hydro-pneumatic adjustable shock absorber

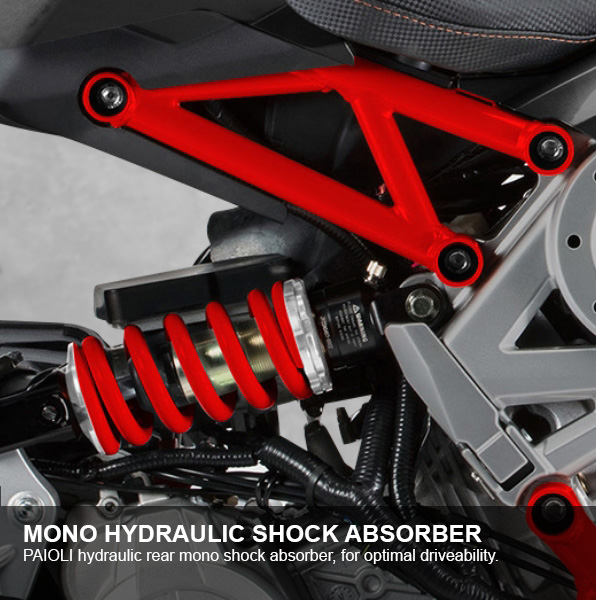

- REAR SUSPENSION: Single hydro-pneumatic adjustable shock absorber
- BRAKES: ABS – (Anti-lock Braking System) Front hydraulic disc brake 200mm: Rear hydraulic disc brake 190mm, BREMBO Calipers
